Universal Monome Grid Lua Emulator — Walkthrough

A browser-based emulator that runs real .lua scripts natively using the Fengari Lua 5.3 runtime, with a Node.js hot-reload dev server. Designed as a universal development tool for any Monome-compatible grid script.

---

Screenshot

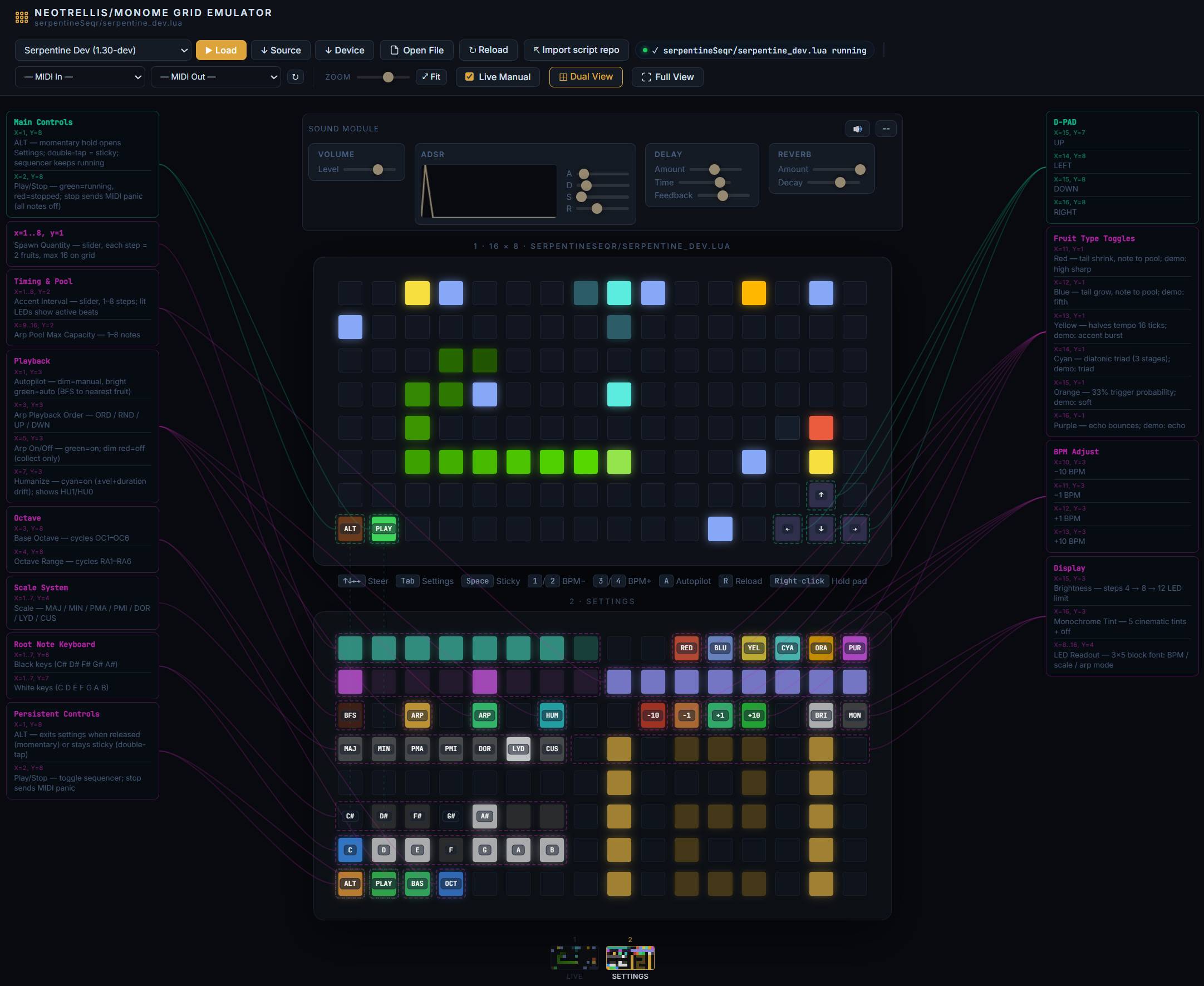

*The emulator running serpentine_dev.lua — snake in motion, docs panel populated from LDoc comments

---

Project Structure

emulator/
├── emulator.html           ← Main UI (grid, script browser, docs/state/console panel)
├── serve.js                ← Node.js dev server + WebSocket hot-reload broadcaster
├── package.json            ← Single dependency: ws
├── docs/
│   └── walkthrough.md      ← This file
├── scripts/
│   ├── manifest.json       ← Script registry (name, file, version, description)
│   ├── serpentine_dev.lua  ← Live dev copy (synced from parent folder)
│   └── serpentine.lua      ← Stable reference copy
└── engine/
    ├── grid-api.js       ← Hardware shim layer
    ├── lua-loader.js       ← Fengari execution bridge + hot-reload WS client
    └── doc-extractor.js    ← LDoc-style comment parser

---

Quick Start

# From inside the emulator/ directory:
node serve.js

Open http://localhost:3141/ in any browser.

The File Picker button works even without the server — you can drag any .lua file from disk directly.

---

Architecture

1. Script Loading

emulator.html fetches scripts/manifest.json on startup and populates the dropdown selector. Clicking ▶ Load fetches the .lua source over HTTP and passes it to the Lua runtime. The Open File button accepts any local .lua without requiring the server.

2. Fengari Execution (engine/lua-loader.js)

Source (.lua)
     │
     ▼
luaL_newstate()         ← fresh Lua VM per script load
luaL_openlibs()         ← math, string, table, etc.
     │
     ├─ Inject globals  ← grid_led, midi_note_on, metro.init, wrap, get_time…
     │
luaL_loadbuffer()       ← compile Lua source
lua_pcall()             ← execute
     │
     └─ Capture event_grid global → wired to pad clicks

All MonomeAPI functions are injected as C-closures that delegate to the JS MonomeAPI class.

Fengari API note: In fengari-web@0.1.4, to_luastring is a top-level export on window.fengari, not nested inside fengari.lua. Always destructure it as: js const { lua, lualib, lauxlib, to_luastring } = window.fengari;

3. Grid Rendering (engine/grid-api.js)

Lua call	JS result
grid_led(x, y, lum)	writes mono {r,g,b} to frame buffer, using current global tint
grid_led_rgb(x, y, r, g, b)	writes RGB to frame buffer
grid_color(r, g, b)	sets a global tint for subsequent grid_led() / grid_led_all() output
grid_led_all(lum)	fills entire frame buffer, respecting current global tint
grid_refresh()	flushes buffer → updates .pad DOM elements
grid_color_intensity(val)	sets master brightness multiplier

Every grid_refresh() call applies the master brightness and sets background + box-shadow CSS on each pad for the glow effect.

grid_color() is a global tint helper; it does not set per-pixel color. For true per-pixel RGB output, use grid_led_rgb(). grid_color_intensity() adjusts the final brightness of rendered output.

4. Hot-Reload (serve.js + lua-loader.js)

Edit .lua file on disk
        │
    fs.watch()                 ← serve.js watches scripts/
        │
    WebSocket broadcast        ← { type: "file_changed", name: "..." }
        │
    browser receives message   ← lua-loader.js
        │
    re-fetch + re-execute      ← ~150ms turnaround

The WebSocket reconnects automatically if the server restarts.

5. Documentation Extraction (engine/doc-extractor.js)

The doc extractor scans Lua source for LDoc-style comments and populates the Docs and State sidepanel tabs automatically after each script load.

Recognised patterns:

-- scriptname: My Script      ← populates script meta card
-- v1.2.3
-- @author: yourname
-- llllllll.co/t/thread-link

-- @section Grid Layout        ← creates a named section in the Docs tab

-- x=1..8, y=1: Some control  ← control map entry (location + description)
-- x=1, y=8: ALT toggle

--- Short description.         ← function doc (triple-dash)
-- @tparam number x  Column (1-based)
-- @treturn boolean  Success flag
local function my_fn(x) ... end

local bpm = 120                ← captured in the State tab (simple scalars)

---

Keyboard Shortcuts

Key	Grid equivalent	Action
↑ ↓ ← →	D-PAD (x15-16, y7-8)	Steer snake
Tab	ALT (x1, y8)	Open settings (hold)
Space	ALT (x1, y8)	Sticky settings toggle
1 / 2	x10-11, y3	BPM −10 / −1
3 / 4	x12-13, y3	BPM +1 / +10
A	x1, y3	Cycle autopilot: NON → SEM → AUT
R	—	Reload current script

---

Adding a New Script

1. Copy your .lua file into emulator/scripts/
2. Add an entry to emulator/scripts/manifest.json:

{
  "name": "My Script",
  "file": "my_script.lua",
  "version": "1.0.0",
  "description": "What it does"
}

1. The dropdown will include it on next page load (or reload).

---

LDoc Annotation Cheatsheet

Paste this header at the top of any script to enable full doc extraction:

-- scriptname: Script Name
-- v1.0.0
-- @author: yourname
-- llllllll.co/t/thread

-- A one-line description shown under the title.

-- @section Controls
-- x=1..8, y=1: Main slider — does X
-- x=1, y=8: ALT toggle — opens settings

-- @section Internal
--- Initialise the game state.
-- @tparam number seed  Random seed
local function init(seed) ... end

---

MIDI Output

Connect a MIDI output via the bottom bar dropdown. The emulator sends: - 0x90 Note On (from midi_note_on) - 0x80 Note Off (from midi_note_off)

Web Audio synthesis runs as a fallback whenever no MIDI output is selected, using a triangle-wave oscillator with configurable volume, attack, and release (sliders below the grid).

---

Extending the Hardware Shim

To add a new API function for a Lua script to call, edit engine/grid-api.js to add the JS-side implementation, then register it in engine/lua-loader.js using setGlobal:

// In lua-loader.js _execute(), after other setGlobal calls:
setGlobal('my_new_fn', (L2) => {
  const val = getInt(L2, 1);   // first Lua argument
  api.my_new_fn(val);
  return 0;                    // number of return values pushed
});

// In grid-api.js:
my_new_fn(val) {
  // JS implementation
}
